2011 Honda St1300 Specs

2011 Honda St1300 Specs

Make Model

Honda ST 1300 Pan European

Year

2011

Engine

Four stroke, longitudinally 90�V-four cylinder, DOHC, 4 valve per cylinder

Capacity

1261 cc / 76.9 cu-in

Bore x Stroke 78 x 66 mm
Compression Ratio 10.8:1
Cooling System Liquid cooled
Lubrication Wet sump
Engine Oil Semi-Synthetic,10W/40

Induction

PGM-FI electronic fuel injection, 36 mm throttle bodies

Ignition

Computer-controlled digital transistorized

Spark Plug NGK, CR7EH-9
Starting Electric

Max Power

118 hp / 87 kW @ 8000 rpm

Max Torque

117 Nm / 11.93 kg-m @ 6500 rpm

Clutch Wet, multiple discs, cable operated

Transmission

5 Speed

Final Drive Shaft
Frame Aluminum-alloy triple-box-section pressure cast dual-spar with cast aluminum-alloy swingarm
Front Suspension 45mm air-assist telescopic fork
Front Wheel Travel 117 mm / 4.3 in
Rear Suspension Single-side conventional damper with adjustable preload and rebound damping
Rear Wheel Travel 133 mm / 4.8 in

Front Brakes

2x 310 mm discs 3 piston calipers

Rear Brakes

Single 316 mm disc 3 piston caliper (ABS option available)

Front Tyre

120/70 ZR18

Rear Tyre

170/60 ZR17

Rake 26�
Trail 98 mm / 3.9 in
Dimensions Length 2282 mm / 89.8 in
Width     935 mm / 36.8 in - including panniers
Height  1332 mm / 52.4 in
Wheelbase 1491 mm / 58.7 in
Seat Height 790 mm  / 31.1 in

Dry Weight

286 kg  /  631 lbs  -  ABS 289 kg / 637 lbs

Wet Weight 331 kg / 730 lbs

Fuel Capacity

29 Liters / 7.7 US gal

Consumption Average

19.8 km/lit  /  46.7 mp/g

Standing Mile

11.6 sec

Top Speed

225 km/h / 139.8 mph

Sport-touring bikes have to do double-duty, and do both well. The Honda ST1300 is proof that if you start out with the world�s ultimate touring bike and the world�s best sportbikes, you can create something magical. One part long-distance hauler, one part canyon-carving ace, ST1300 combines Gold Wing-inspired luxury with CBR-derived performance. Its wind-tunnel-honed bodywork and hard saddlebags perfectly complement a powerful V-4 engine, shaft drive, a race-bred chassis, and ABS. The result? A bike that�s equally at home swallowing up miles of blacktop as it is dicing through the twistiest of alpine passes. And all without ever breaking a sweat.

Long distance adventure is best experienced aboard a machine that's keenly in tune with your riding senses. For years, the Honda ST1300� has answered the call of the open road by setting the standard for power and handling in a package that's the perfect fit for crisscrossing the USA or just enjoying a long weekend on the road. Equipped with a powerful 1261cc V-4 engine and Honda's sophisticated Programmed Fuel Injection, plus full-coverage bodywork, a three-way adjustable rider's seat, a motor-driven adjustable windscreen, dual saddlebags and more, the ST1300 remains the choice of dedicated long-haul riders.

Honda ST1300 ABS Features and Benefits

Honda Power

Nobody understands V-4 engines like Honda. And the fuel-injected 1261cc engine found on the ST1300 is the stuff of legend, delivering power and performance honed from decades of innovative design.

How to make a great bike even better.

A selection of Honda Genuine Accessories can make a great bike like the ST1300 even better. Want to know what�s available? The information is just a click away.


Anti-Lock Brakes

You never know what�s around that next turn, or what the road�s going to throw at you. That�s why the anti-lock brake option on our ST1300 ABS makes it a favorite with riders who really pile on the miles.

Totally Dialed.

Nobody can combine technology, performance, and comfort like Honda, and the ST1300 is a great example. With its comfortable, all-day ergonomics and sportbike-bred power and performance, it�s also the best of both worlds. No matter where your riding takes you�cross-town or cross-country�you won�t find a better sport-touring motorcycle, and the groundbreaking features highlighted here are the result.

Honda Genuine Accessories�

- Touring Accessories: Removable Saddlebag Liner Set, Saddlebag Scuff-Pad Set, Knee-Pad Set, Fairing Air-Deflector Set, Tank Pad, Heated Grips

- Additional Accessories: 12-Volt DC Accessory Socket Set, Cycle Cover

� WARRANTY: Because we're so confident in the quality of each of our Honda Genuine accessories, we're pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

Review

The Red Velvet Cupcake

With a V4 that is as smooth as a premium red velvet cupcake from Jamaica's Cakes in Los Angeles, the venerable 2009 Honda ST1300 returns for a seventh year (eight, if you're counting in Euros), and it proves that a classic recipe remains tasty over time.

As is so often the case, the 2009 ST1300 reflects Honda's relentless (and typically successful) pursuit of perfection. Taking the motorcycle for repeated long rides, it's difficult to find faults that don't involve expecting the ST to be something it is not. In the case of the ST1300, it's all about touring in exceptional comfort, with the ability to ride it like an upright sportbike when desired.

On the touring side, because the motorcycle has roots back to 1990, it is fairly barebones. You certainly won't find the motorhome-like niceties that make the Gold Wing the luxurocruiser it is, but if your primary concern is ergonomics, the ST is flawless. If range concerns you, the tank holds a munificent 7.7 gallons. As it's a sporting bike, you do not sit in a recumbent position. Instead, you have an almost perfectly neutral seating position that is both comfortable for the long haul and well suited to more aggressive riding.

The Honda ST1300's suspension (non-adjustable, save rear preload) has the same sort of wide ranging success. It soaks up bumps and bruises in the road as if they weren't there, yet it doesn't wallow in turns (the aluminum frame adds to this) when ridden at a sensibly fast pace. I don't want to oversell its sporting abilities-it's not a Brutale-but for the typical rider who is also interested in long-distance capabilities, the Honda ST acquits itself nicely.

Ground clearance is good in turns, even those tight ones with dips that severely test lean angle. At higher speeds, touching down is a good reminder that you're on a sport-touring motorcycle, not a superbike. Ride within reason (and that is a wide acceptable range, as I engaged in 100 mph sweepers), and the Honda ST1300 will reward you generously with abundant stability (and noticeably less agility).

Certainly, the ST1300 is not a motorcycle that wants to dive into corners with impunity; though its wheelbase is two inches shorter than the new VFR1200F, the ST is considerably heavier. It's important to set the motorcycle up for turns and pick a line you like. It is not anxious to cut tighter into a turn than you planned, but you can do more than you think might be possible, if you are willing to add some muscle to the wide bars. Without a doubt, this is not a motorcycle that oversteers.

Interestingly, the ST is excellent when it comes to side-to-side transitions. S-turns are a delight. And, while the ST may have a longitudinally mounted V4 (Moto Guzzi-style) and a shaft drive, there are not any strange handling quirks to go along with it. There's neither jacking up during acceleration, nor squatting when stopping.

Power is abundant, and the V4 revs quite quickly. The redline comes earlier than you expect, especially because the motor is so smooth. You get an extra 500 rpm before the rev limiter gently kicks in at about 9000 rpm. A bit soft, though nicely controllable, off idle, the V4 gains speed nicely, causing much of the motorcycle's heft to disappear. Gear selection isn't critical, unless you are pushing the sport end of the ST's equation.

Brakes are always an important commodity on a motorcycle pushing 730 pounds (plus rider, passenger and luggage). The twin 310mm discs up front (not radially mounted, but with six pads per caliper) are fine for the job, as is the single rear disc. The ABS version is a great safety feature if you ride in areas with unpredictable weather. In the dry, you could easily go through your entire ownership of the motorcycle without accessing the ABS service. However, it is a nice ace-in-the-hole to have to protect against unexpected emergency stops (Malibu housewives texting in their Porsche Cayenne Turbos), even though the Bridgestone tires are reluctant to relax their grip on the pavement.

Then there's the Combine Braking System. Linking the front and rear brakes, and front and rear brake levers, it allows you to brake effectively using only the foot pedal. As an experienced rider, I cannot quite buy into that, but I don't mind the rear brake being intelligently applied, even when I'm only actuating the front brake. Ultimately, it is transparent, and that's all you can ask for.

The stock, removable hard bags are nice and roomy, and lockable. There are plenty of bags that won't carry my LowePro Mini Trekker camera bag when it's loaded up, but it snuggly fits into one of the ST's bags. As the V4 is smooth as silk, I didn't worry about vibration taking a toll on my Nikon D2H and 70-200/2.8 VR lens, and it did not. I certainly cannot say the same for many motorcycles on the road.

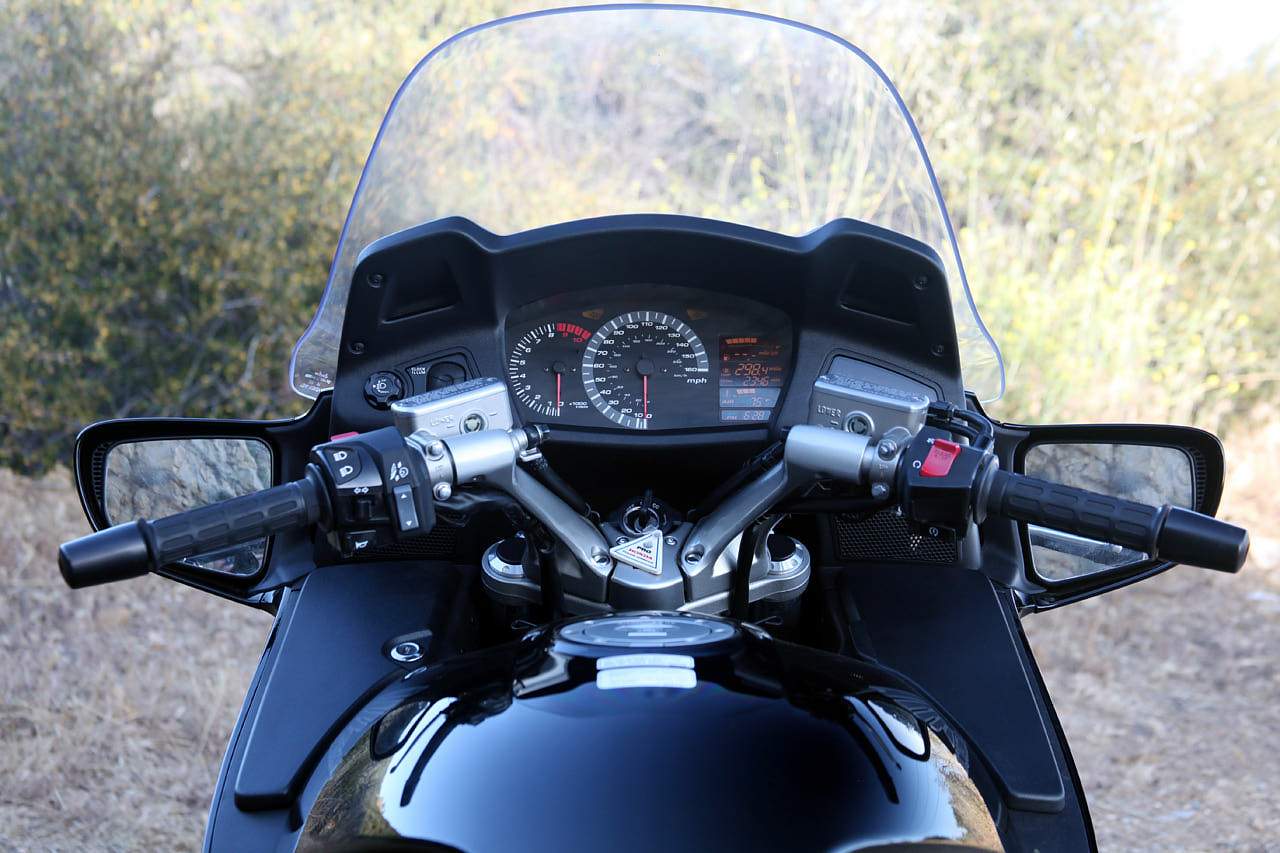

The ST1300 does have an electronically adjusted windshield that has a range of almost 7-and-a-half inches (plus over two manually adjustable inches), so riders of a wide variety of heights can fine-tune the shield to almost any conditions or desires. For sport riding, I run it low. On the freeway, I jack it up. Both positions are perfect in those situations. Additionally, Honda Genuine Accessories offers a fairing air-deflector set that allows further personalization.

Twenty years since the ST1100 first hit the road, the ST1300 remains a pleasing and relevant mount. It doesn't have the luster of the latest-and-greatest, but as a back-to-basics sport-tourer that has all the amenities and capabilities that you need to get nowhere fast, the 2009 Honda ST1300 ABS does not disappoint.

Action photography by Kelly Callan

Source

ultimatemotorcycling.com
